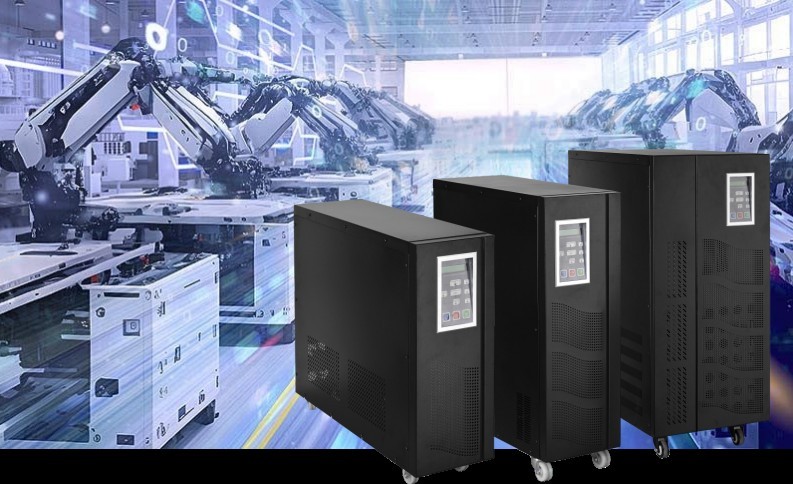

Applications
Network centers , server clusters , telecom , banking systems , hospitals , government ,
securities , fi nance , industrial process control , routers , switches , o ffi ce automation ，etc .
Key Features
Design optimized for grid conditions to improve system availability
High-reliability design to ensure stable operation of network systems
Intelligent battery management to extend battery life
Complete protection functions for high stability and reliability
Advanced digital parallel control technology
User-friendly HMI: LCD + LED and network management for easier monitoring
|
Model |
1101GS |
1102GS |
1103GS |
1104G/GS |
1106G/GS |
1108GS |
1110GS |
1115GS |
1120GS |
1130GS |
|
Capacity |
1KVA |
2KVA |
3KVA |
4KVA |
6KVA |
8KVA |
10KVA |
15KVA |
20KVA |
30KVA |
|
AC input |
||||||||||
|
Input voltage |
Single-phase 160–275 VAC (optional AVR: 110–300 VAC) |
|||||||||
|
Input frequency |
50(60) Hz ±5% |
|||||||||
|
Bypass input |
||||||||||
|
Voltage range |
Single-phase 160–275 VAC (optional AVR: 110–300 VAC) |
|||||||||
|
Frequency range |
50(60) Hz ±5% |
|||||||||
|
Max. current |
6A |
12A |
18A |
24A |
34A |
45A |
56A |
82A |
110A |
160A |
|
AC output |
||||||||||
|
Output voltage |
Single-phase 220VAC |
|||||||||
|
Output frequency |
50(60) Hz |
|||||||||
|
Voltage regulation |
±1% |
|||||||||
|
Frequency stability |
±0.5%(when utility fails) |
|||||||||
|
Waveform |
SPWM sine wave |
|||||||||
|
Power factor |
0.8 (lagging) ( optional 0. 9) |
|||||||||
|
THD |
<3%(linear load) |
|||||||||
|
Transient response |
Voltage change ≤ 3% (100% load step on/off) |
|||||||||
|
Crest factor |
3:1 (max) |
|||||||||
|
Battery |
||||||||||
|
Battery voltage |
48VDC optional 192VDC) |
192VDC |
||||||||
|
Battery type |
Maintenance-free lead-acid battery |
|||||||||
|
Recharge time |
8–10 hours to reach 90% capacity |
|||||||||
|
Alarms |
||||||||||
|
Utility failure |
Buzzer beeps once every 4 seconds |
|||||||||
|
Utility abnormal |
Buzzer beeps once every 4 seconds; utility mode indicator flashes |
|||||||||
|
Battery low |
Buzzer beeps once every 1 second; battery mode indicator flashes; low-battery LED on |
|||||||||
|
Overload |
Overload LED on; continuous buzzer |
|||||||||
|
UPS fault |
Fault LED on; continuous buzzer |
|||||||||
|
Internal protection |
||||||||||
|
Battery |
Low-battery auto shutdown; auto restart when utility returns; miniature circuit breaker protection |
|||||||||
|
Overload |
110%: normal; 125%: transfer to bypass after 10 min; 150%: after 1 min; >150%: after 200 ms; auto recovery when load returns to normal |
|||||||||
|
Over-temperature |
Internal temperature > 85°C: transfer to bypass automatically |
|||||||||
|
Output short circuit |
Current limiting; auto shutdown; miniature circuit breaker protection |
|||||||||
|
UPS abnormal |
Transfer to bypass automatically; load powered by utility |
|||||||||
|
Noise filter |
10–100 kHz @ 40 dB; 100 kHz–100 MHz @ 70 dB |
|||||||||
|
Control panel LED+LCD |
||||||||||
|
LCD display |
UPS status; input/output voltage; input/output frequency; battery voltage; output load (%); inverter temperature |
|||||||||
|
Low-battery indicator |
On when battery voltage is low |
|||||||||
|
Overload indicator |
On when overloaded |
|||||||||
|
Fault indicator |
On when fault occurs |
|||||||||
|
UPS status |
Utility mode; Battery mode; Inverter; Bypass; UPS abnormal |
|||||||||
|
Safety standards |
||||||||||
|
Safety |
GB4943 |
|||||||||
|
EMI |
IEC62040-2，GB7260.2 |
|||||||||
|
EMS |
IEC61000-4-2~5 ，GB/T 17626.2~5 |
|||||||||
|
Environment |
||||||||||
|
Operating temperature |
-10~50℃ |
|||||||||
|
Relative humidity |
20~90% RH (non-condensing) |
|||||||||
|
Altitude |
< 2000 m (derate output by 2% for every +500 m) |
|||||||||
|
Noise (1 m in front) |
<55dB |
|||||||||
|
Physical |
||||||||||
|
Wiring method (I/O) |
Terminal block |
|||||||||
|
Net weight(no battery),kg |
46 |
63 |
75 |
68 |
75 |
110 |
115 |
150 |
200 |
245 |
|
Dimensions(W×D×H)mm |
200×530×460 |
200×620×540 |
230×580×550 |
230×580×700 |
310×590×870 |
435×680×900 |
435×680×1000 |
|||
|
Others |
||||||||||
|
Overall efficiency |
＞85% (optional 90–95%) |
|||||||||
|
Transfer time (utility failure) |
0ms |
|||||||||
|
Communication port |
RS232 (external SNMP card supported); optional RS485 and DB9 dry contacts |
|||||||||
|
Note |
Custom options available: input isolation transformer, surge protector, 220 VAC input / 110 VAC output or 110 VAC input / 220 VAC output, non-standard special versions, and medical UPS. |
|||||||||
