Applications
Government / Finance / Telecommunications / Education / Transportation/ Meteorology Broadcasting & TV / Industry & Commerce / Tax Services / Healthcare / Energy & Power
Key Features
Full digital control ; stable performance .
Space-saving design for data rooms .
Hot-swap modules; near-zero downtime .
MTBF up to 250 , 000 h.
Flexible redundancy; ≥2 spare modules up to 99. 999% reliability.
Fault module isolates instantly.
Distributed bypass with load sharing.
Adjustable charging; auto CC/CV/float.
Color touch LCD (CN/ EN) ; module LCD/ LED.
Front-panel EPO.
|

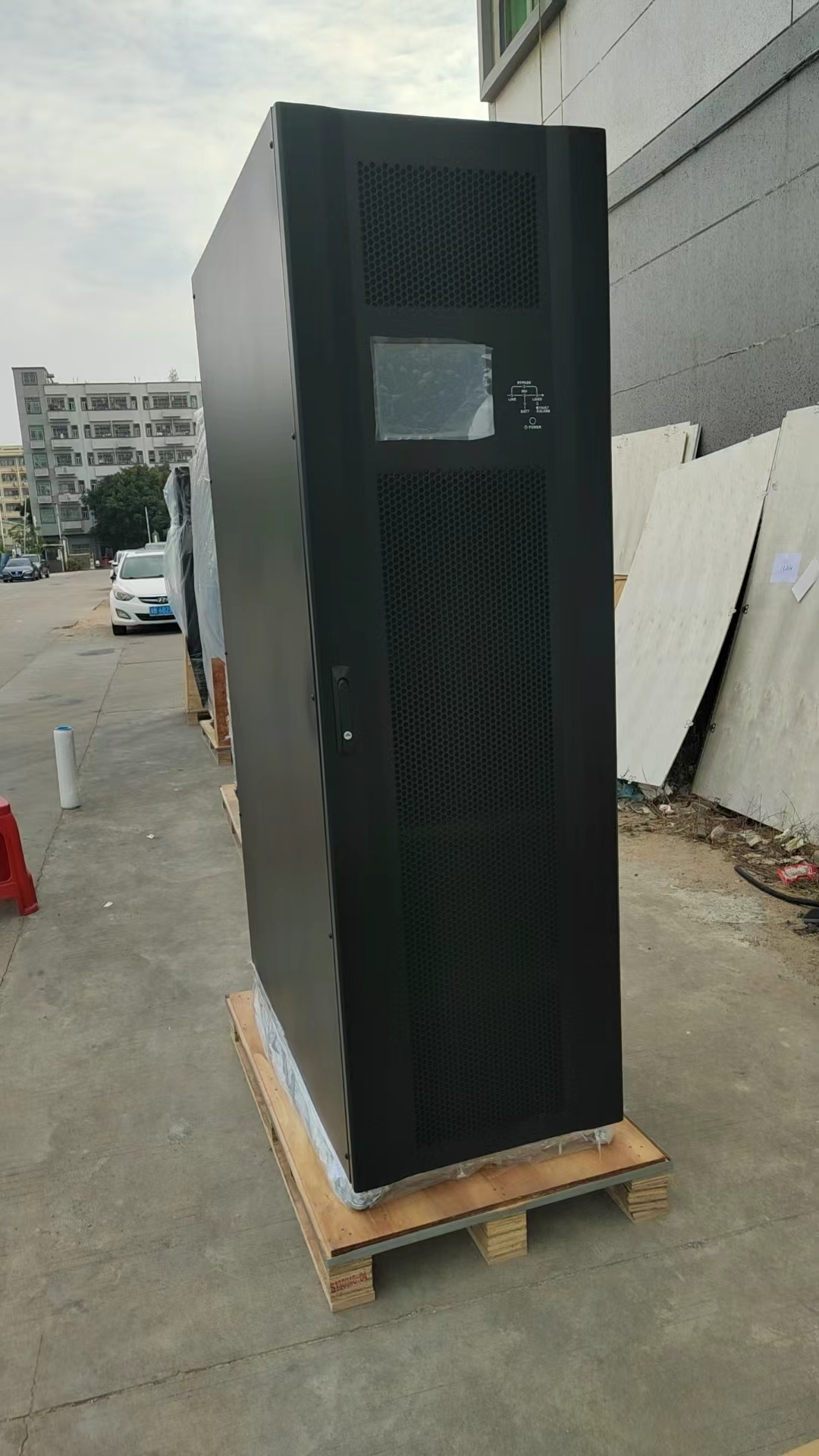

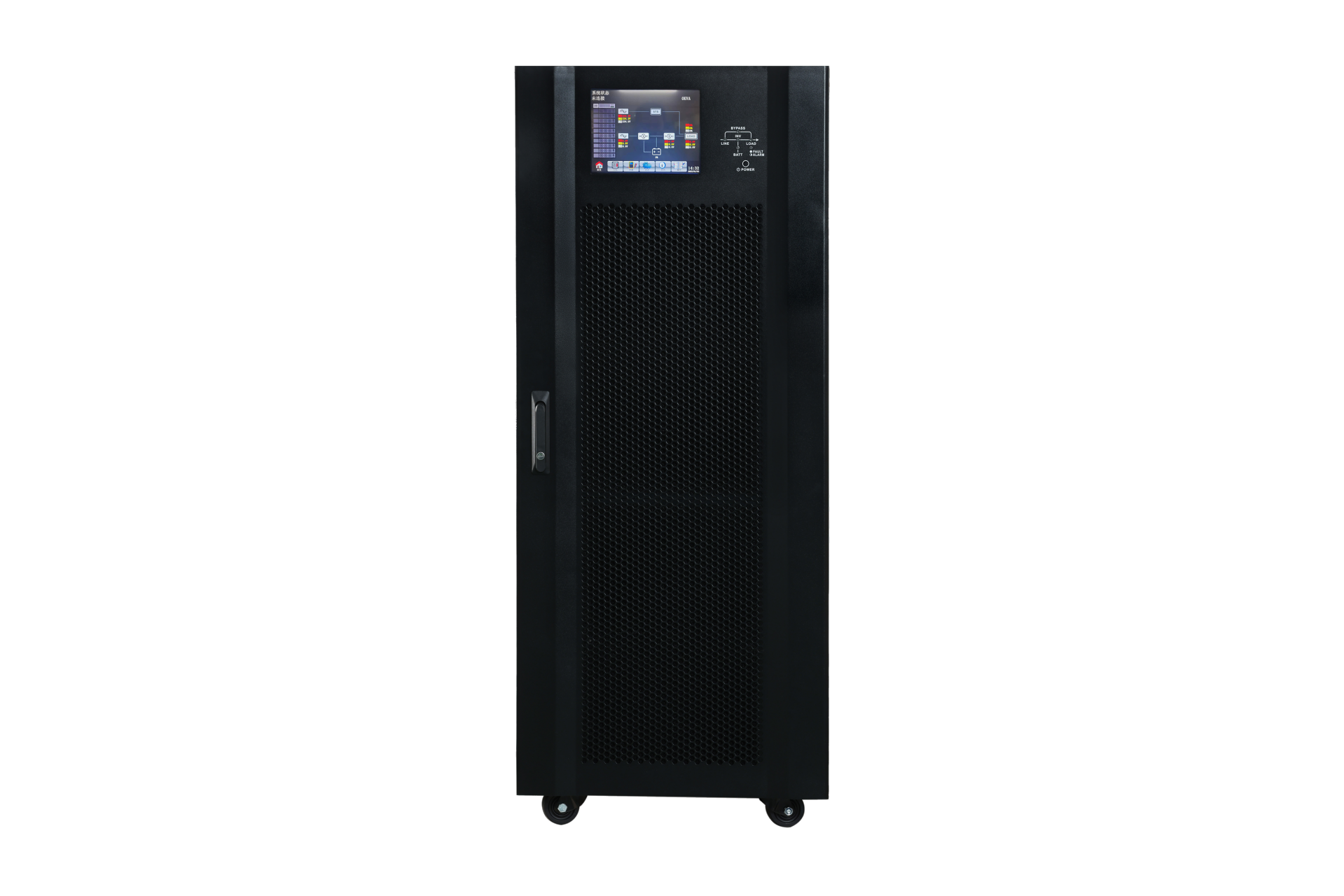

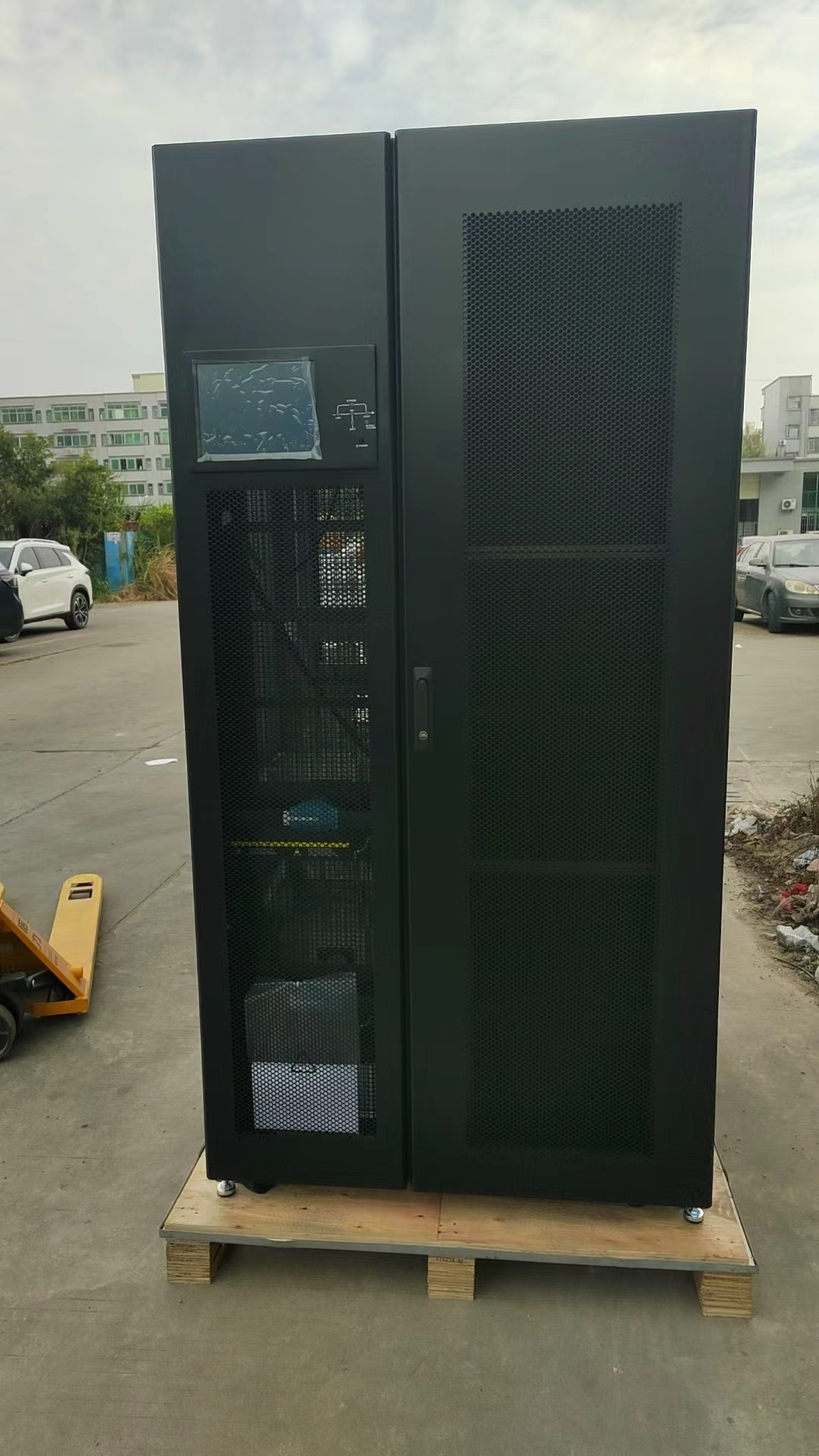

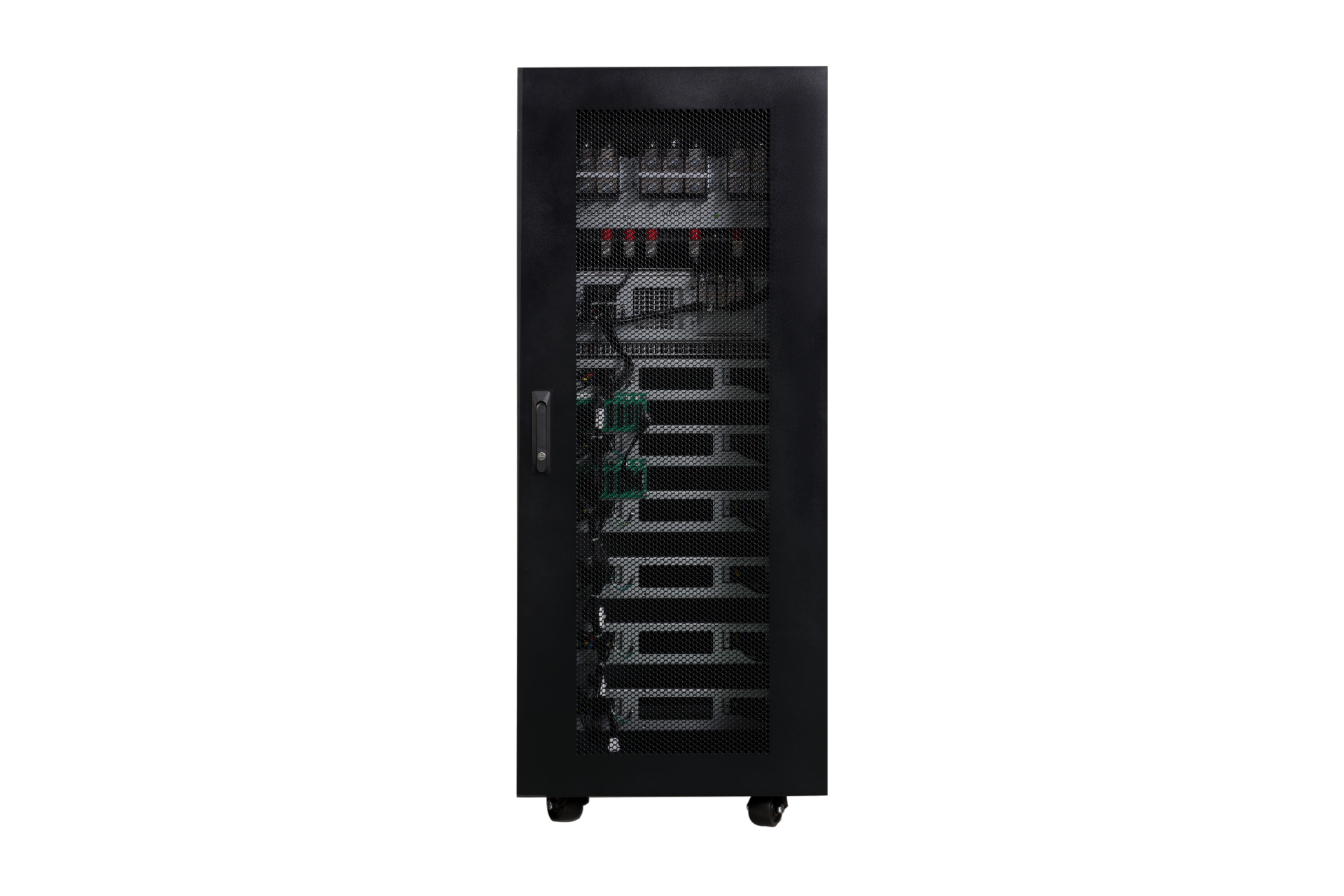

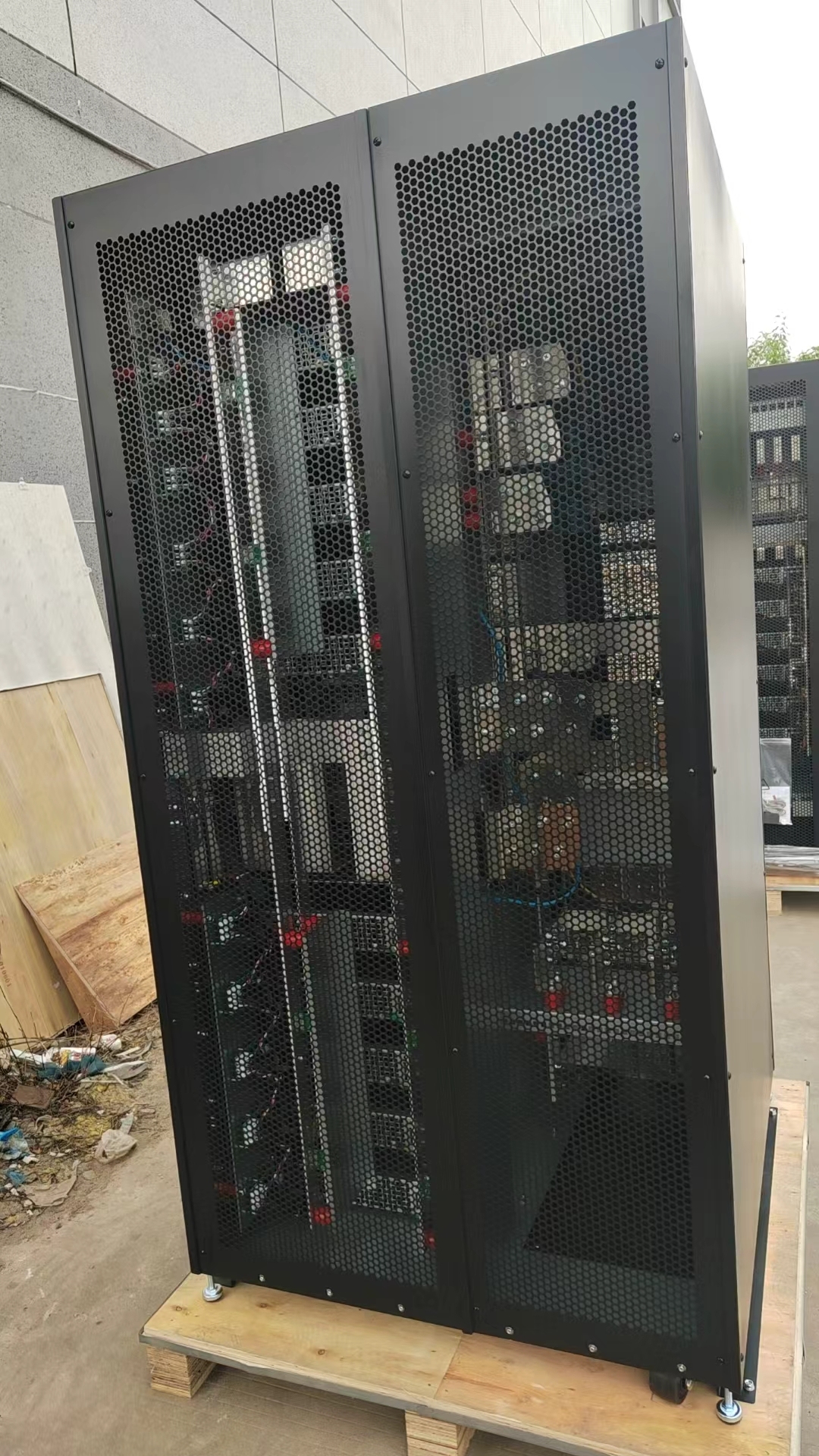

Model |
3320-60M 15U |
3320-120M 30U |
3320-200M42U |
3330-90M 15U |
3330-120M 30U |
3330-180M 30U |
3330-300M42U |
|
Phase |
3P in 3P out |
||||||
|
Cabinet capacity |
60KW |
120KW |
200 KW |
90KW |
120KW |
180KW |
300KW |
|
Battery type |
External battery |
External battery |
External battery |
External battery |
External battery |
External battery |
External battery |
|
Power module capacity |
20KVA/20KW |
20KVA/20KW |
20KVA/20KW |
30KVA/30KW |
30KVA/30KW |
30KVA/30KW |
30KVA/30KW |
|
Max. power modules |
3 |
6 |
10 |
3 |
4 |
6 |
10 |
|
Max. battery module sets |
3 |
- |
- |
3 |
- |
- |
- |
|
Input |
|||||||
|
Rated voltage |
3 x 380VAC/400VAC/415VAC(3Ph+N) |
||||||
|
Voltage range |
100%load 305 ~ 478 VAC ; <70% load 208 ~ 304VAC |
||||||
|
Rated frequency |
50/60Hz(auto select) |
||||||
|
Frequency range |
40~70Hz |
||||||
|
Power factor |
100%load> 0.99 ; 50% load >0.98 |
||||||
|
THDi |
< 3% @ 100% load |
||||||
|
Output |
|||||||
|
Rated voltage |
3 x 380VAC/400VAC/415VAC (3Ph+N) |
||||||
|
Voltage regulation (steady state) |
≤ ± 1%typ. (balanced load) ; ≤ ± 2% typ.(unbalanced load) |
||||||
|
Voltage regulation (dynamic) |
≤± 5% typ. |
||||||
|
Rated frequency |
50/60Hz |
||||||
|
Frequency range(Sync range) |
46Hz~54Hzor 56Hz~64Hz |
||||||
|
Overload capability |
110% 60min , 120% 10min , 150% 60s , >150% 200ms |
||||||
|
THD |
≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) |
||||||
|
Efficiency |
Up to 94.5% |
||||||
|
Battery / Charging |
|||||||
|
Rated voltage |
± 216V (12V x 36 cell) |
||||||
|
Max. voltage |
± 240V (12V x 40 cell) |
||||||
|
Min. voltage |
± 192V (12V x 32 cell) |
||||||
|
Float voltage |
2.25V / cell |
||||||
|
Equalize voltage |
2.35V / cell |
||||||
|
Temperature compensation |
Supported |
||||||
|
Max. charging current |
6A |
6A |
6A |
8A |
8A |
8A |
8A |
|
Physical |
|||||||
|
Cabinet dimensions (D×W×H) mm |
1100 x 514 x 763 |
1100×600×1475 |
1100×600×2010 |
1100×514×763 |
1100×600×1475 |
1100 x 600 x 1475 |
1100×600×2010 |
|
Cabinet weight (kg) |
182 |
434.5 |
625 |
183.5 |
335 |
437.5 |
620 |
|
Environment |
|||||||
|
Working environment |
0~40℃;0~95%RH (non-condensing) |
||||||
|
Altitude |
<1000mrated power |
||||||
|
IP rating |
Ip20 |
||||||
|
Management |
|||||||
|
RS-232/USB |
Supports Windows ® 2000/2003/XP/Vista/2008, Windows ® 7, Linux and MAC |
||||||
|
SNMP(optional) |
Power management: supports SNMP and network management. |
||||||
|
Safety standards |
|||||||
|
Safety |
IEC/EN60950-1; IEC/EN62040-1 |
||||||
|
EMC |
IEC/EN62040-2 CategoryC3 |
||||||
