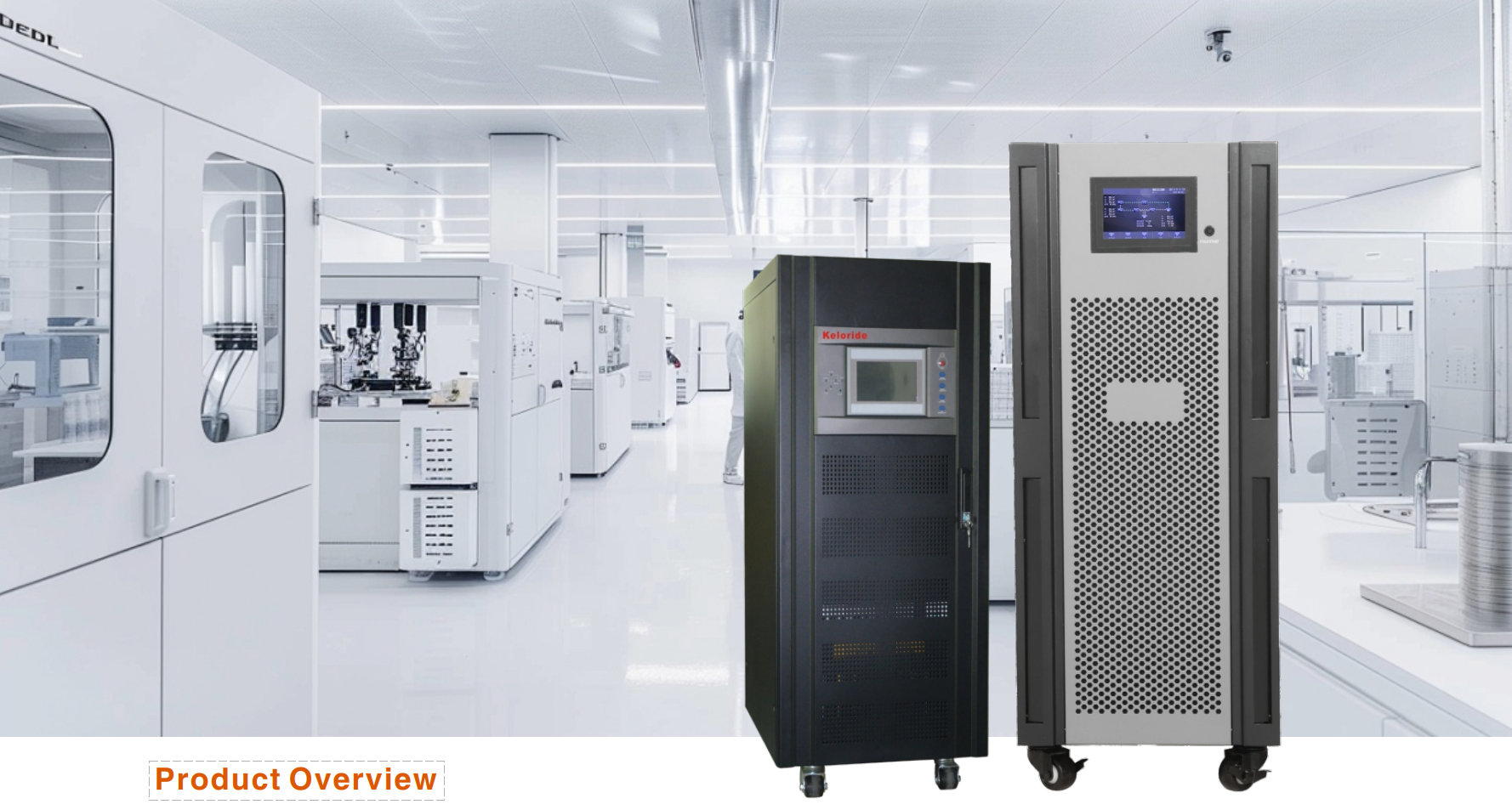

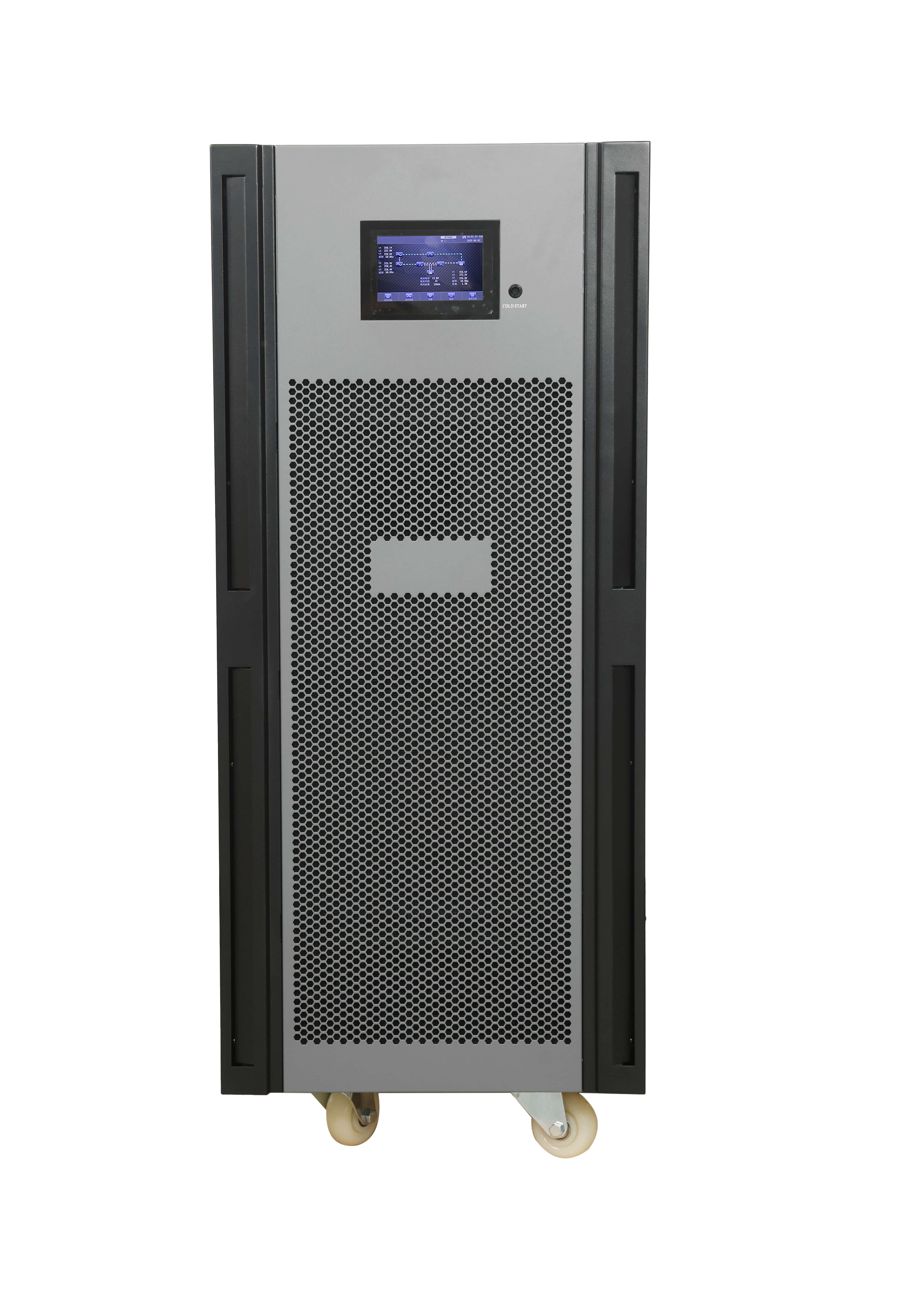

Model |
3310GS |
3315GS |
3320GS |
3330GS |
3340GS |
3360GS |
3380GS |
33100GS |
33120GS |
33160GS |
33200GS |
|
|
Capacity |
10KVA/8KW |
15KVA/12KW |
20KVA/16KW |
30KVA/24KW |
40KVA/32KW |
60KVA/48KW |
80KVA/64KW |
100KVA/80KW |
120KVA/96KW |
160KVA/128KW |
200KVA/160KW |
|
|
Main input |
||||||||||||
|
Input voltage range |
380/400/415Vac ；165 -280 (Ph -N) / 285 -485 (Ph -Ph) |
|||||||||||
|
Input wiring |
3Ph+N+PE |
|||||||||||
|
Frequency range |
50Hz ±5（10% ）/60Hz ±5（10% ） |
|||||||||||
|
Input power factor |
≥0.7 (without filter); ≥0.97 (with filter) |
|||||||||||
|
Rectifier technology |
SCR (thyristor) |
|||||||||||
|
THDi |
<50% (without filter); <15% (with filter) |
|||||||||||
|
Bypass input |
||||||||||||
|
Bypass voltage range |
176 - 264Vac(Ph -N) / 304 -456Vac (Ph -Ph) |
|||||||||||
|
Bypass wiring |
3Ph+N+PE |
|||||||||||
|
Frequency tracking range |
50 ± 5（ 10% ）/60 Hz ± 5（10% ） |
|||||||||||
|
Bypass overload capability |
150% - 180% 1H- 300s ；>180% 300S |
|||||||||||
|
Output |
||||||||||||
|
Output voltage |
3×380VAC/400VAC/415VAC 3Ph+N |
|||||||||||
|
Voltage regulation |
±1% |
|||||||||||
|
Output power factor |
0.8 |
|||||||||||
|
Frequency sync range |
Utility mode / Battery mode: 50/60 Hz ± 0.01 Hz |
|||||||||||
|
Waveform |
Sine wave |
|||||||||||
|
THDv |
≤2%(linear load);≤4%(non-linear load); |
|||||||||||
|
Phase unbalance |
120° ±1% (balanced load); 120° ±2% (50% unbalanced load) |
|||||||||||
|
Recovery time |
Recover to 90% of rated value within 3 cycles |
|||||||||||
|
Transfer time (Utility → Battery) |
0ms |
|||||||||||
|
Overload capability |
≤ 110% 60 min ; ≤125% 10 min ; ≤150% 1 min ;>150% 200ms |
|||||||||||
|
Crest factor |
3:1（ max） |
|||||||||||
|
Load power factor range |
0.6–1 (capacitive or inductive) |
|||||||||||
|
Unbalanced output voltage @ 100% unbalanced load |
＜1% |
|||||||||||
|
Current limiting |
Severe overload, short circuit; RMS voltage limiting; inrush current; peak voltage limiting. |
|||||||||||
|
Transfer time (Inverter → Bypass) |
Synchronized mode: seamless transfer; Non-synchronized mode: 10 ms. |
|||||||||||
|
Transfer to bypass |
Immediate; overload 160%. |
|||||||||||
|
Return to inverter |
Auto transfer after alarm is cleared |
|||||||||||
|
Efficiency |
Online mode |
89% |
90% |
91% |
92% |
|||||||
|
Battery mode |
90% |
91% |
92% |
93% |
||||||||
|
Rectifier |
||||||||||||
|
Rectifier type |
6 pulse |
|||||||||||
|
Rated DC voltage |
384VDC |
|||||||||||
|
Charging voltage |
395VDC - 435VDC( Adjustable ) |
|||||||||||
|
Battery & Charging |
||||||||||||
|
Battery quantity (12 V) |
29/30/31/32 Pcs (Adjustable) |
|||||||||||
|
Charging current |
Max. = Capacity (kW) / Battery voltage (real-time) × max. current; max. current never exceeds 40 A |
Max. 40 A; 5 A @ full load |
||||||||||
|
Battery type |
Sealed lead-acid; Ni-Cd |
|||||||||||
|
Communication & Management |
||||||||||||
|
Communication ports |
Dry contact, USB, RS232, RS485; 1 slot for communication card; optional SNMP |
|||||||||||
|
Control panel |
3.5" LCD; optional 5" color touch screen |
|||||||||||
|
Alarms |
output overload, utility abnormal, UPS fault, low battery; history log supported |
|||||||||||
|
Protections |
output short circuit, overload, over-temp, low battery, output over/under-voltage, fan fault, lightning protection |
|||||||||||
|
Other functions |
||||||||||||
|
ECO mode |
Supported |
|||||||||||
|
EPO function |
Supported |
|||||||||||
|
Walk-in function |
Supported |
|||||||||||
|
Parallel quantity |
Up to 4 units |
|||||||||||
|
Environment |
||||||||||||
|
Operating temperature |
0- 55 ℃ |
|||||||||||
|
Storage temperature |
- 25 ~ 55 ℃(no battery) |
|||||||||||
|
Relative humidity |
＜95% RH(non-condensing) |
|||||||||||
|
Altitude |
0–1500 m at 100% load; above 1000 m, derate output power by 1% per 100 m. |
|||||||||||
|
Noise (1 m in front) |
70dB@100%load |
|||||||||||
|
Protection |
||||||||||||
|
IP rating |
IP20 |
|||||||||||
|
Conformal coating (3-proof) |
Standard |
|||||||||||
|
Dust filter |
Standard |
|||||||||||
|
Physical |
||||||||||||
|
Dimensions (L×W×H) mm |
560x 360 x 900 |
683 x 450x1100 |
821x432x1159 |
975 x 554 x 1286 |
1051x705x1646 |
|||||||
|
Weight (kg) |
108 |
146 |
146 |
220 |
256 |
297 |
400 |
472 |
573 |
720 |
790 |
|
